The model range of manual filtration systems MDF 2" is specially designed to remove insoluble mechanical impurities from water, liquids, fuels. The performance of this model reaches up to 100 m3 / h. Ideal for hot water filtration, fuel filtration (gasoline, kerosene, diesel fuel), filtration of alkalis/acids and alkaline/acid solutions.
Advantages:

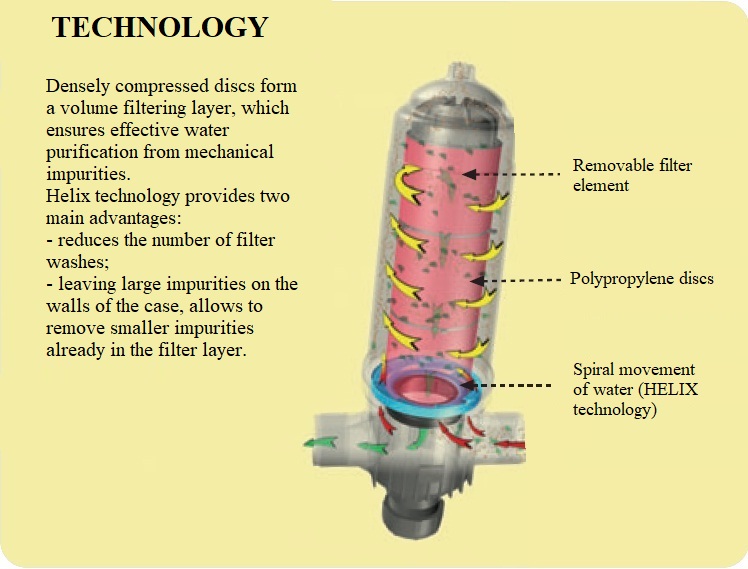

* The technology of spiral distribution of processed water, liquids, fuel on the surface of the filter element is used, which significantly increases the filter cycle of the system and minimizes the number of filter washes.
* Special design and filter material allows to work in special conditions: liquid temperature (water, fuel) up to 90 degrees Celsius, pressure up to 16 bar.
* Ease of installation, repair, maintenance, filter cleaning.
* Depth filtration allows to achieve high efficiency of water, liquid, fuel purification.
* Small overall dimensions modularity of MDF filters makes it possible to combine with other water treatment systems.

Producer | Megaflow | |
Maximum
capacity* | 30 | м³/ч |
Maximum
working pressure | 16 | бар |
Minimum
operating pressure | 0 | бар |
| Connection, input/output | 50 х 2"" | мм х дюйм |
The number
of flasks and the diameter of the flask port | -" | шт х дюйм |
Filtration
area | 1699 | см² |
Maximum
water temperature | 90 | ̊С |

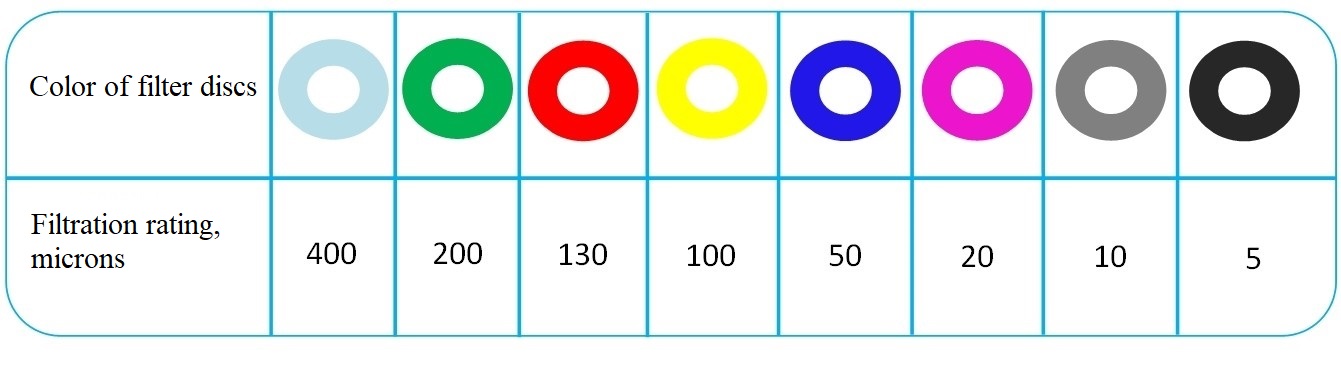

The filtration rating depends on the disc elements, which differ in color: * - Filter performance is indicated at the maximum filtration rating (400 microns) and with "conditionally" clean water entering the filter. For the correct selection of the filtration system, use the CALCULATOR or you can contact our technical staff.
