Система фільтрації Azud Helix Long 3SR 400 micron

Megaflow

Disc filters

Disc filters with Manual Cleaning

Система фільтрації Azud Helix Long 3SR

Система фильтрации Azud Helix Long 3SR фото 1

Система фільтрації Azud Helix Long 3SR alt 3

Brand

Azud

Max. flow, m3/h *

Filter surface area, cm2

1699

Connection, inch

Connection type

BSP thread

Availability

In Stock

510 .0€

Order a consultation

The range of manual filters Azud DF HS is specially designed to remove insoluble mechanical impurities from water. The productivity of this model reaches up to 100 m3/h. Ideal for water filtration in the private sector, industry, agriculture and the municipal sector.

Advantages:

* Helix System (HS) technology is used - a patented method of spiral distribution of treated water over the surface of the filter element, which significantly increases the filter cycle of the system and minimizes the number of filter washes.

* Special design of filters and high-strength plastic allows you to work in aggressive conditions.

* Ease of installation, repair, maintenance.

* Different types (thread, viktaulik, flange) and diameters of filter connection ports.

* Depth filtration allows to achieve high efficiency of water purification.

* Small overall dimensions modularity of Azud filters makes it possible to combine with other water treatment systems.

Producer	Azud
Maximum capacity*	50	м³/ч
Maximum working pressure	10	бар
Minimum operating pressure	0	бар
Connection, input/output	80 х 3""	мм х дюйм
The number of flasks and the diameter of the flask port	-"	шт х дюйм
Filtration area	1699	см²
Maximum water temperature	60	̊С

* - The performance of the filter is indicated at the maximum filtration rating (400 microns) and with "conditionally" clean water entering the filter. For the correct selection of the filtration system, use the CALCULATOR or you can contact our technical staff.

The filtering rating depends on the disk elements, which differ in color:

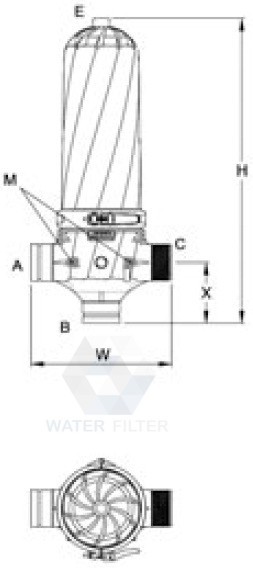

Dimensions:

A, B (connection diameter (inlet/outlet), BSP (parallel thread))	3"
H (height)	727	мм
W (width)	336	мм
Х	147	мм
D (diameter)	212	мм
M (gauge connection diameter, BSP (parallel thread))	1/4"
E (faucet connection diameter, BSP (parallel thread))	3/4"
