Система фільтрації Azud DF M100 2

Megaflow

Disc filters

Disc filters with Manual Cleaning

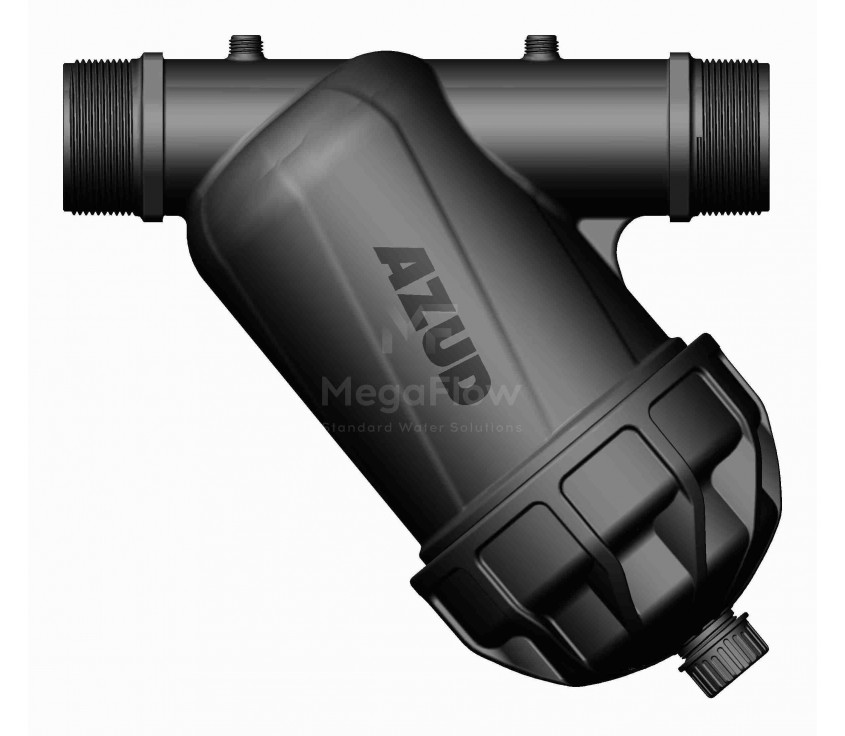

Система фільтрації Azud DF M100 2

Система фильтрации Azud DF M100 2" фото 1

Brand

Megaflow

Max. flow, m3/h *

Filter surface area, cm2

535

Connection, inch

Connection type

BSP thread

Availability

In Stock

110 .0€

Order a consultation

The range of manual filters Azud DF is specially designed to remove insoluble mechanical impurities from water. The productivity of this model reaches up to 25 m3/h. Ideal for water filtration in the private sector, industry, agriculture and the municipal sector.

Advantages:

* Special design of filters and high-strength plastic allows you to work in aggressive conditions.

* Easy to install, repair, maintain

* Depth filtration allows to achieve high efficiency of water purification.

* Small overall dimensions modularity of Azud filters makes it possible to combine with other water treatment systems.

Producer	Azud
Maximum capacity*	25	м³/ч
Maximum working pressure	8	бар
Minimum operating pressure	0	бар
Connection, input/output	50 х 2""	мм х дюйм
The number of flasks and the diameter of the flask port	-"	шт х дюйм
Filtration area	535	см²
Maximum water temperature	60	̊С

Standard filtration rating - 130 microns

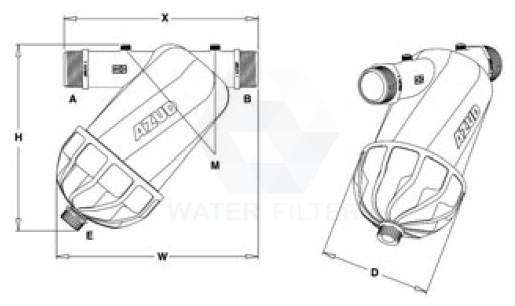

Dimensions:

A, B (connection diameter (inlet/outlet), BSP (parallel thread))	2"
H (height)	250	мм
W (width)	270	мм
X (building length)	267	мм
D (diameter)	147	мм
M (gauge connection diameter, BSP (parallel thread))	1/4"
E (faucet connection diameter, BSP (parallel thread))	3/4"
