The range of Azud AGL manual filters is specially designed to remove insoluble mechanical impurities from water. The productivity of this model reaches up to 100 m3/h. Ideal for water filtration in the private sector, industry, agriculture and the municipal sector. The filter consists entirely of polymeric materials.
Advantages:
* The filter is completely made of polymeric materials. The special design of the filters and high-strength plastic allows you to work in aggressive conditions.
* Ease of installation, repair, maintenance.
* Different types (thread, viktaulik, flange) and diameters of filter connection ports.

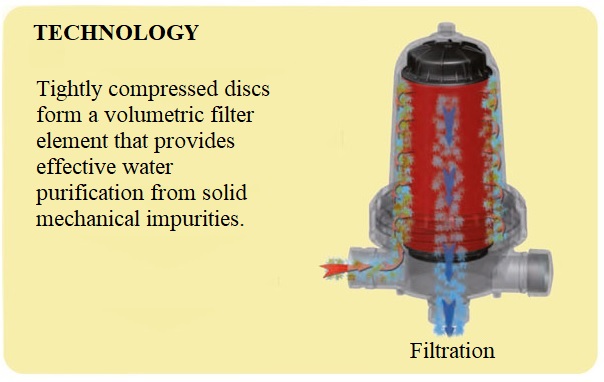

* Depth filtration allows to achieve high efficiency of water purification.
* Small overall dimensions modularity of Azud filters makes it possible to combine with other water treatment systems.
Producer
Azud
Maximum
capacity*
50
м³/ч
Maximum
working pressure
8
бар
Minimum
operating pressure
0
бар
Connection,
input/output
80 х 3""
мм х дюйм
The number
of flasks and the diameter of the flask port
-"
шт х дюйм
Filtration
area
1660
см²
Maximum
water temperature
60
̊С

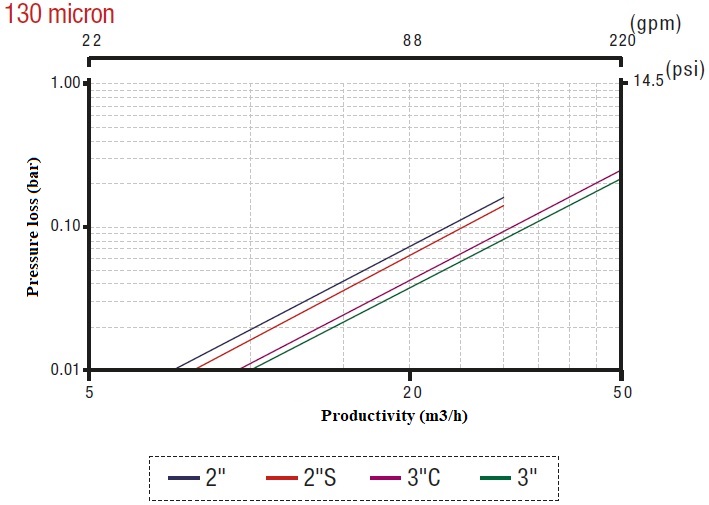

* - The performance of the filter is indicated at the maximum filtration rating (400 microns) and with "conditionally" clean water entering the filter. For the correct selection of the filtration system, use the CALCULATOR or you can contact our technical staff.
The filtering rating depends on the disk elements, which differ in color:
Dimensions
A, B
(connection diameter (inlet/outlet), BSP (parallel thread))
3"
H (height)
650
мм
W (width)
335
мм
Х
110
мм
D
(diameter)
232
мм
M (gauge
connection diameter, BSP (parallel thread))
1/4"
E (faucet
connection diameter, BSP (parallel thread))
